Sunsynk ECCO 8.8Kw Hybrid solar & wind Inverter


#2: SUN-8.0-ECCO

Sunsynk 8Kw Data Sheet

Sunsynk 8Kw Installation Manual

Sunsynk 8Kw Warranty

Sunsynk 8Kw G99 Certificate

ENA system reference: NINGZ/02417/V1/A5

To view our full range of Sunsynk products visit our main Sunsynk page here

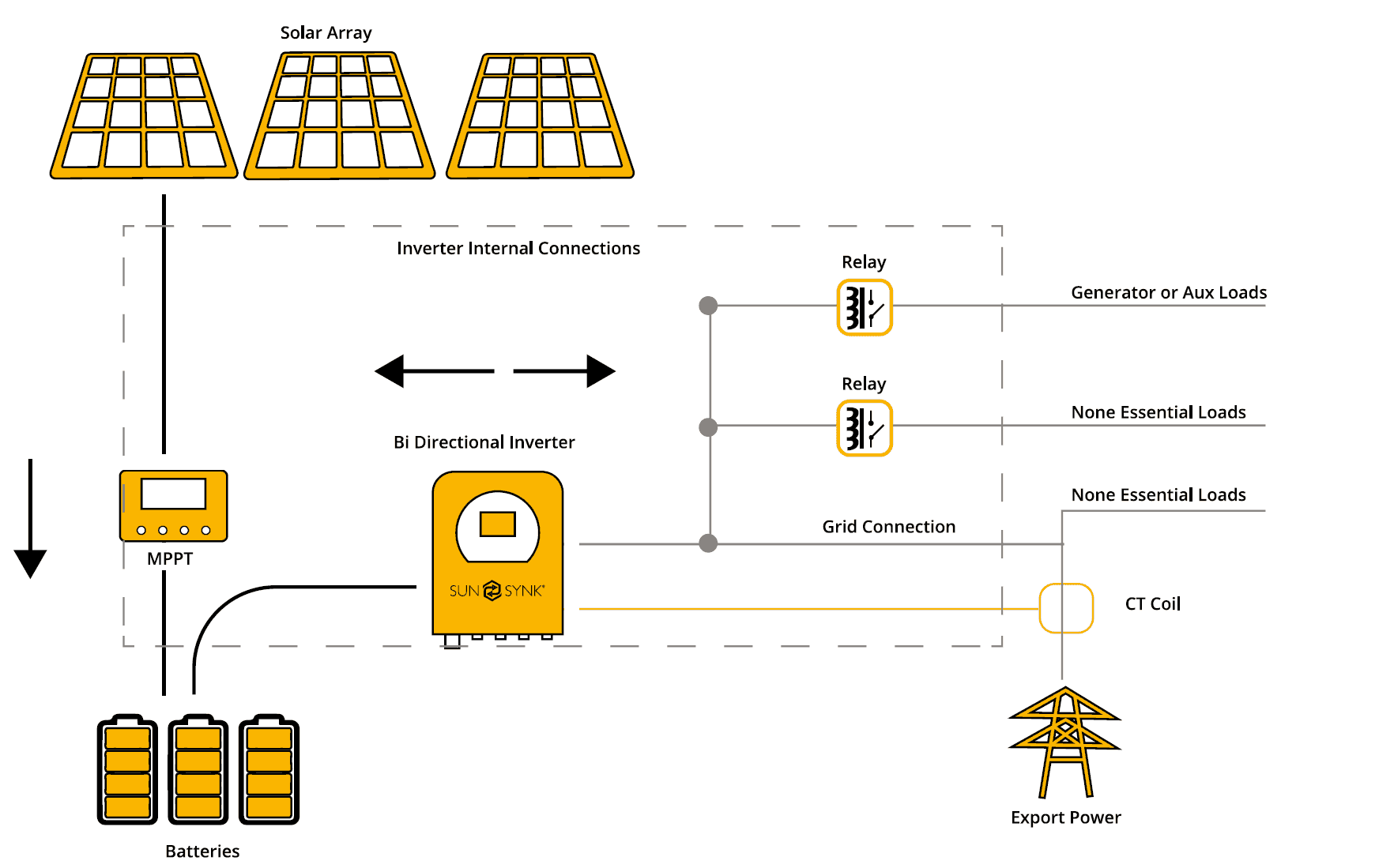

Sunsynk 8kW Hybrid Inverter – Efficient Power Management for Home & Business

The Sunsynk 8kW Hybrid Inverter is designed to efficiently manage energy flow from multiple sources, including solar panels, the main electrical grid, and generators. With smart features and API integration with platforms like Octopus Agile, Flux, and Go, you can optimise energy usage, buy electricity at low rates, and sell excess energy back to the grid through SEG payments.

Key Features

Smart Energy Management

• Dual MPPT design for maximised solar harvesting

• Compatible with most Lithium-ion and Lead Acid batteries

• Automatic switching between Grid-Tied and Off-Grid modes

• Zero export function for controlled energy distribution

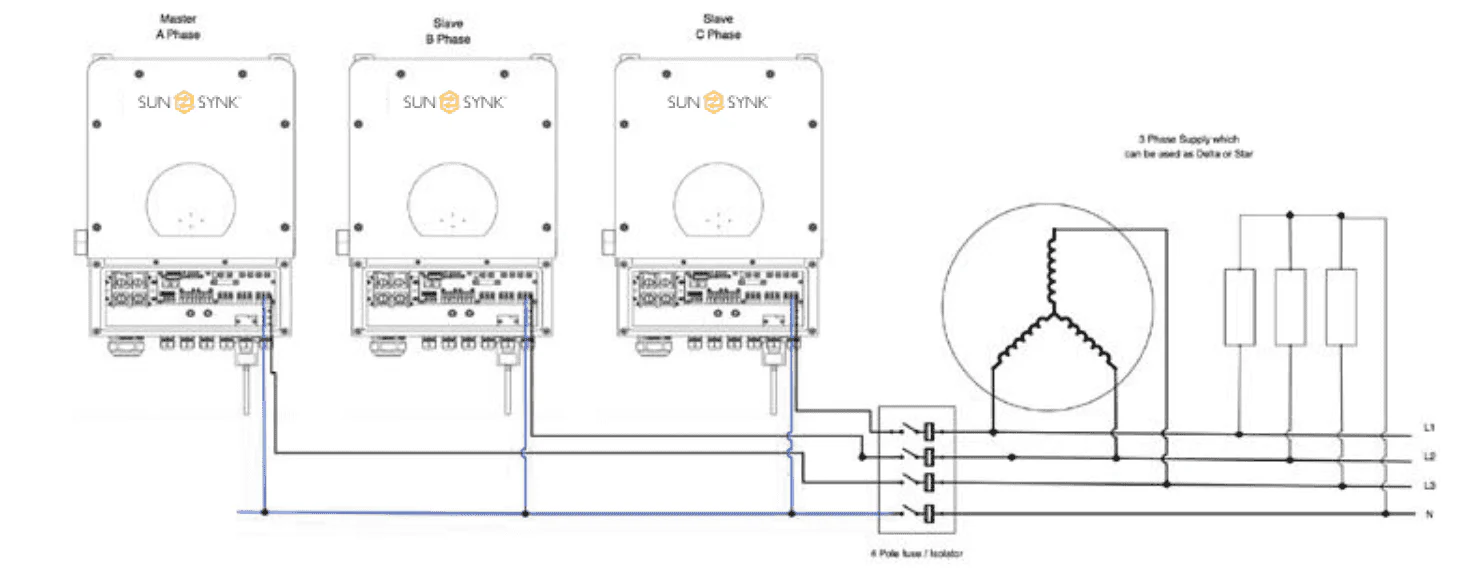

• Supports up to 16 parallel units with the same firmware

• Separate outputs for Essential and Non-Essential Loads

Monitoring & Control

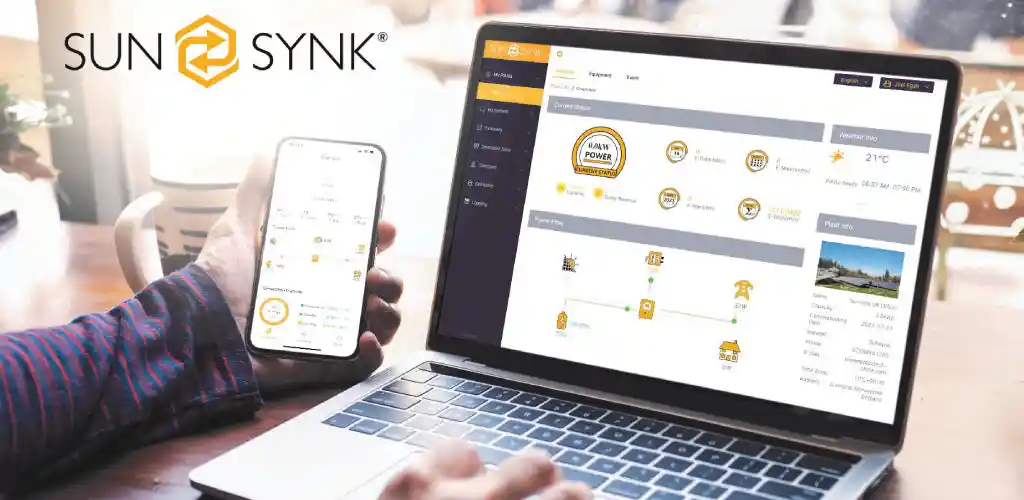

• Mobile App Monitoring: Access real-time stats, control settings, and generate reports via SolarMan App

• Remote Configuration: Update inverter settings and firmware remotely from anywhere

• Real-Time Notifications: Receive instant alerts for power cuts, generator use, or battery status

• Live Energy Statistics: Track peaks in energy usage to optimise consumption and reduce electricity bills

Integration & Connectivity

• Works with Octopus Agile, Flux, and Go for dynamic energy pricing

• Data logger enables charging at low-cost periods and discharging at high-price periods to maximise savings

• Includes Wi-Fi logger and CT sensors for complete system oversight

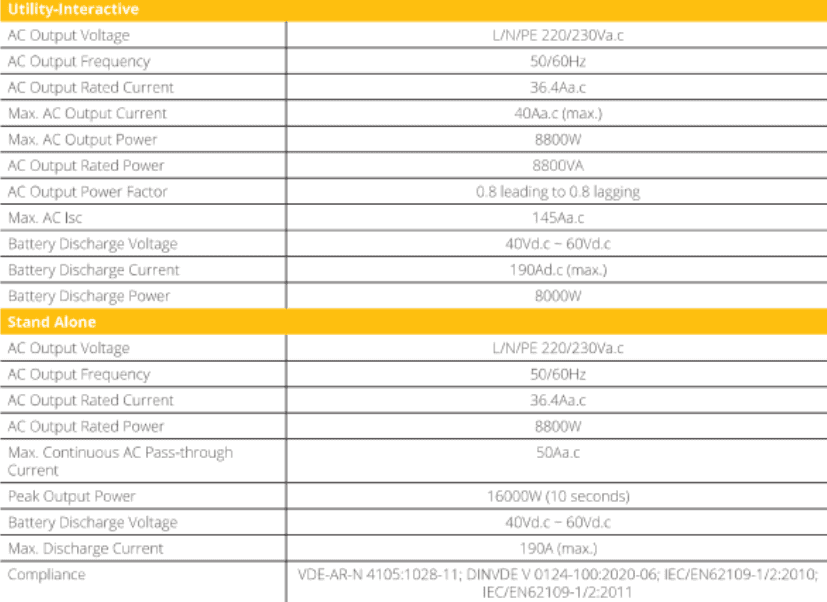

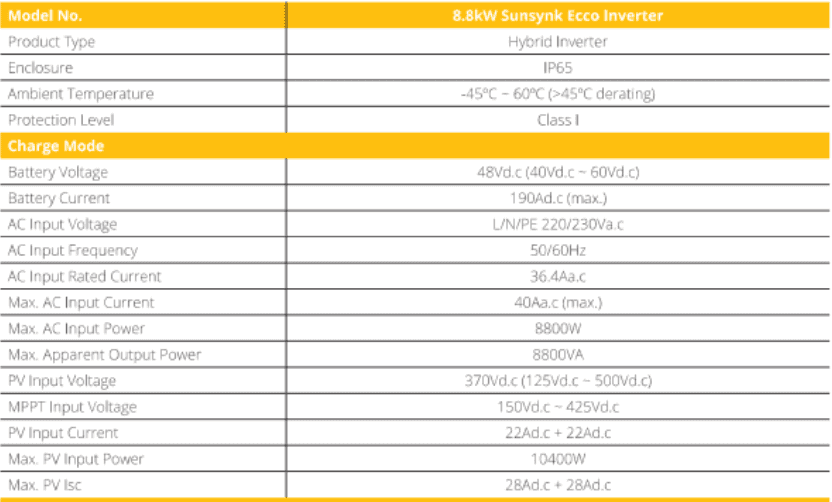

Technical Specifications

Electrical & Performance

• Rated Power: 8,000 W

• Max DC Power: 10,400 W

• Max AC Power (5 min): 8,001 W

• Surge AC Power (1 sec): 8,002 W

• Max DC Current: 44 A

• DC Inputs: 2

• MPPT Quantity: 2

• Euro Efficiency: 96.5 %

• Transformer: None

• DC Startup Voltage: 150 V

• Max Input Voltage: 500 V

• Connector Type: MC4

Physical & Environmental

• Weight: 25 kg

• IP Rating: IP65

• Dimensions: Refer to datasheet

• Integrated DC Switch: Yes

Advanced App Features

Remote Monitoring & Control

• Full control over hybrid inverter settings

• Instant firmware updates

• Real-time push notifications for power and system events

Analytics & Reporting

• Customisable graphs and reports

• Monitor energy production, consumption, and savings

• Optimise battery charge/discharge using live and historical data
