Solis Mini 6S 2kW Grid-Tie Inverter – Compact, Silent & Efficient

The Solis Mini 6S 2kW inverter is part of the latest generation of grid-tied inverters, designed for small-scale solar PV systems. With its compact and lightweight build, fanless cooling, and ultra-quiet operation, it’s perfect for residential installations where space and noise are key considerations.

---

Key Features

• ⚡ Rated Power: 2,000W (Single Phase)

• ⚡ Max PV Input Power: 3,000W

• ⚡ High Efficiency: Up to 96.6% Euro efficiency

• ⚡ Ultra-Quiet: Fanless design producing <20 dBA noise

• ⚡ Wide Voltage Range: Startup from just 60V, max input 600V

• ⚡ Built-in AFCI Protection: Prevents DC arc faults for extra safety

• ⚡ Integrated DC Switch: Easy emergency shut-down & safe maintenance

• ⚡ Smart Grid Ready: DRM (Demand Response Mode) & export power management

• ⚡ Compatible with high-efficiency & bi-facial solar modules

---

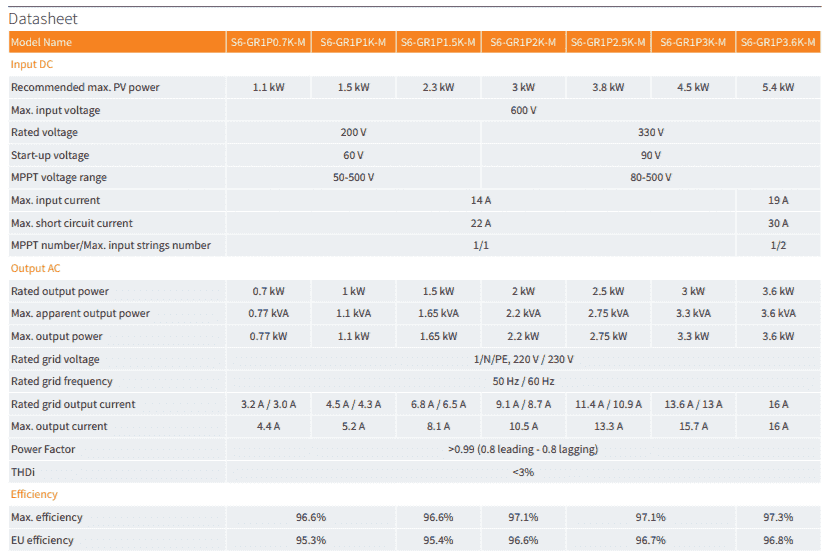

Technical Specifications

• Rated Power: 2,000 W

• Phases: 1 (Single Phase)

• Min PPT Voltage: 90 V

• Max PPT Voltage: 500 V

• DC Startup Voltage: 90 V

• DC Shutdown Voltage: 80 V

• Max DC Voltage: 600 V

• Max DC Power: 3,000 W

• Max AC Power (5 Minutes): 2,200 W

• Surge AC Power (1 Second): 2,200 W

• Max DC Current: 14 A

• MPPT Quantity: 1

• DC Inputs: 1

• Connectors: MC4 (1 included)

• Transformer: None

• Euro Efficiency: 96.6 %

• Integrated DC Switch: Yes

• Warranty: 5 Years

---

Why Choose the Solis Mini 6S 2kW?

• Ideal for small residential PV installations

• Compact & lightweight – easy wall-mounted installation

• Quiet operation – fanless technology makes it suitable for indoor or living areas

• Future-ready – built-in grid compliance features such as DRM and export limitation

• Safety guaranteed – arc-fault protection and DC switch included

---

🔑 The Solis Mini 6S 2kW inverter offers powerful performance in a compact, silent, and smart package – making it the go-to choice for small-scale solar projects.
