Solis 10 kw 3 Phase on grid Solar Inverter

#2: SOL-S5-GR3P-10K-DC

#4: S5-GR3P10K-DC

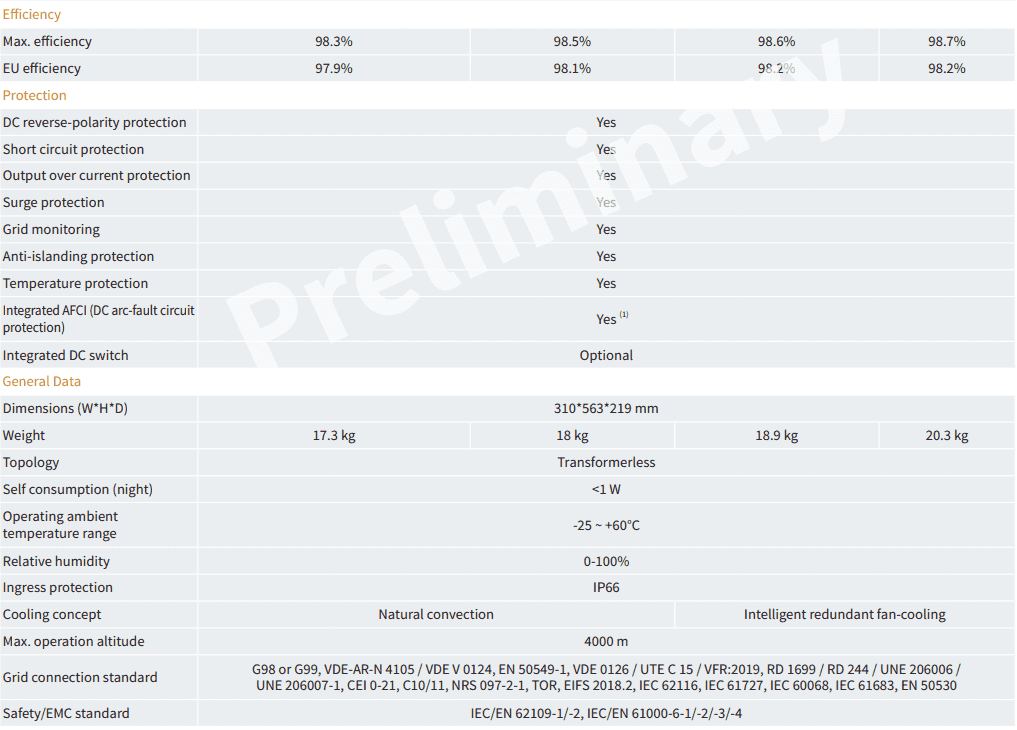

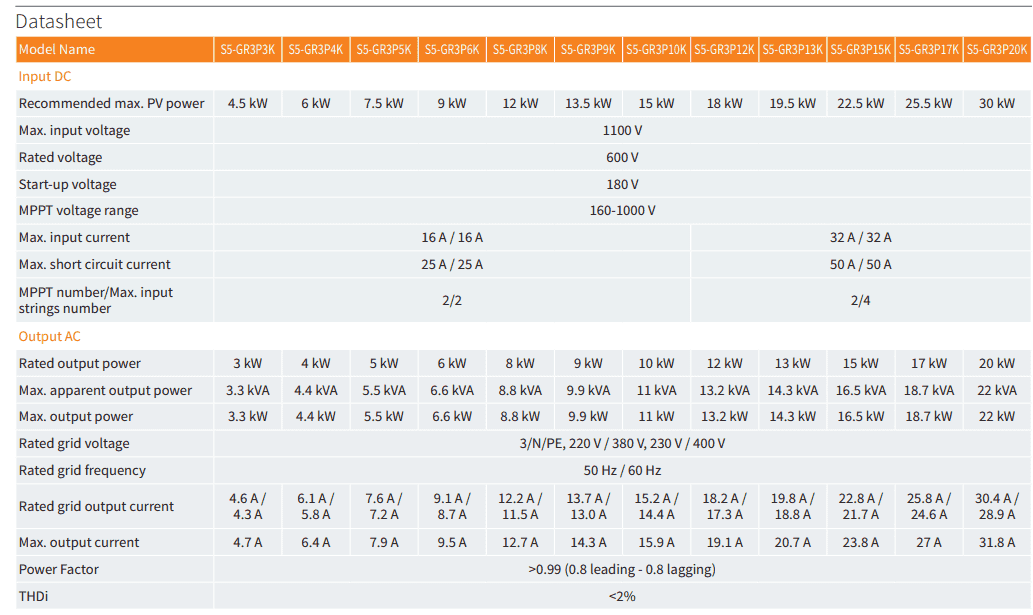

Solis 10kw Data Sheet

Solis 10kw Manual

Solis 10kw Warranty

Solis 10kw G100 Certification

Extended 5yr warranty available here

Solis Series 5 GR3P – 10kW Three Phase Grid-Tied Inverter

Designed for high-performance residential and commercial solar PV systems, the Solis Series 5 GR3P delivers reliable, efficient, and safe energy conversion with advanced protection features.

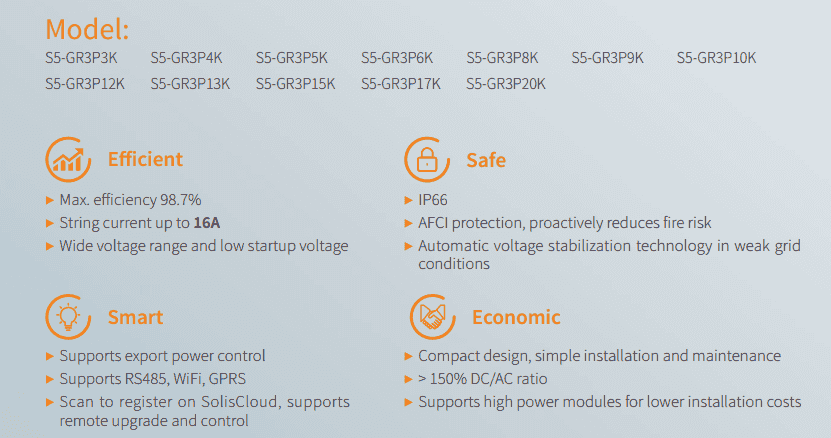

Key Features:

• High Efficiency: Max. 98.5% conversion efficiency for optimal energy yield

• Three Phase Power: Ideal for large-scale or commercial solar installations

• Wide Voltage Range: Ultra-low start-up voltage of 180V and maximum PV input voltage of 1,100V

• DC & AC Protection: Integrated Type-II surge protection, DC reverse-polarity protection, and AFCI (arc-fault) protection

• Smart Connectivity: Register on SolisCloud for remote monitoring, upgrade, and control

• IP66 Rated: Dust and water-resistant for long-lasting outdoor installation

• Integrated DC Switch: Simplifies installation and maintenance

Technical Specifications:

• Rated Power: 10,000 W

• Max AC Output Power (5 min): 11,000 W

• Max PV DC Power: 15,000 W

• Max DC Current: 32 A

• Max DC Inputs: 2

• MPPT Quantity: 2

• Connectors: 4 × MC4

• Transformer: None

• Euro Efficiency: 97.9%

• Warranty: 5 years

Physical Specs:

• Weight: 17.8 kg

• Dimensions: Standard for Series 5 GR3P

The Solis Series 5 GR3P is perfect for installers and homeowners seeking a robust, high-efficiency three-phase inverter with integrated protection, remote monitoring, and maximum power output.
