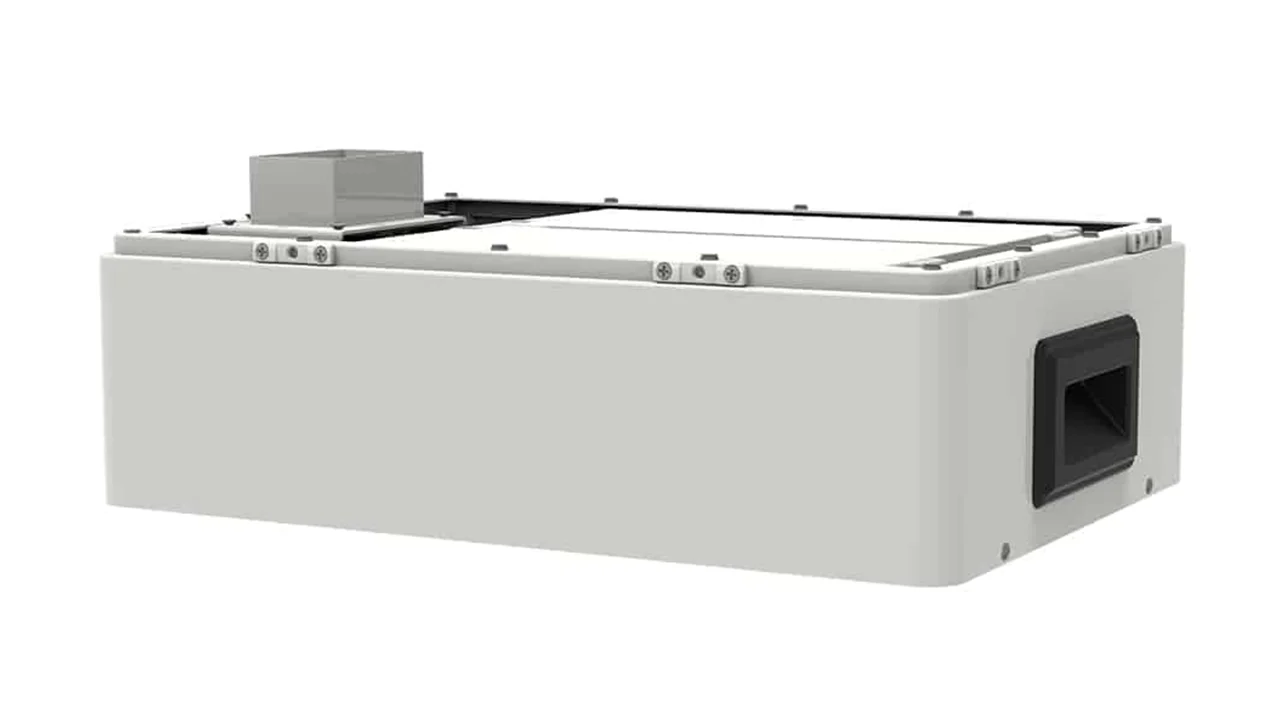

SolaX Triple Power HS36 3.6kWh Battery Module

The SolaX Triple Power HS36 3.6kWh Battery Module is a high-performance, modular lithium battery designed for scalable residential and commercial solar energy storage systems. Built using advanced lithium iron phosphate (LFP) cell technology, the HS36 delivers exceptional safety, reliability, and long-term performance while supporting flexible system expansion as energy demands grow.

Designed for seamless stacking installation, the HS36 battery module can be configured in systems ranging from 7.3kWh up to 47.9kWh using between two and thirteen battery modules. Combined with the SolaX MCS0800 Battery Management System and HS25/HS36 kit and base, it forms part of the advanced T-BAT-SYS-HV-S3.6 high-voltage battery storage platform.

Featuring integrated battery heating technology, the HS36 maintains reliable performance even in low-temperature environments, making it ideal for year-round operation. Its modular plug-and-play design with pre-wired communication cables enables fast and straightforward installation, often by a single installer.

With a high 90% depth of discharge, over 6,000 charge cycles, IP65 protection, and remote diagnostic capability via compatible SolaX inverters, the HS36 is engineered for efficient, intelligent, and dependable energy storage.

Key Features & Benefits

• 3.6kWh modular high-voltage battery storage module
• Advanced lithium iron phosphate (LFP) battery technology
• Scalable system capacity from 7.3kWh to 47.9kWh
• Compatible with SolaX MCS0800 BMS and HS25/HS36 system accessories
• Supports up to 50A continuous charging and discharging current
• Integrated battery heating technology for low-temperature operation
• Soft-start function helps protect batteries and inverters from surge current
• Modular stackable design for easy system expansion
• Pre-wired communication cables for fast installation
• Remote monitoring, diagnosis, and firmware updates via inverter
• Long lifespan with over 6,000 charge/discharge cycles
• Suitable for indoor and outdoor installation with IP65 protection
• High usable capacity with 90% depth of discharge

Technical Specifications

• Battery Capacity: 3.6kWh
• Battery Chemistry: Lithium Iron Phosphate (LFP)
• System Scalability: 2–13 Modules (7.3kWh–47.9kWh)
• Continuous Charge/Discharge Current: 50A
• Depth of Discharge (DoD): 90%
• Cycle Life: 6,000+ Cycles
• Ingress Protection: IP65
• Dimensions: 510mm (L) × 365mm (W) × 152mm (H)
• Weight: 33.5kg
• Standard Warranty: 12 Years

Why Choose the SolaX HS36 Battery?

The SolaX Triple Power HS36 offers a future-proof energy storage solution with excellent scalability, long-term reliability, and advanced safety features. Its modular architecture makes it ideal for homeowners and businesses looking to start with a smaller battery system and expand capacity over time as energy usage increases.

Combining robust LFP battery chemistry, intelligent heating functionality, high cycle life, and simplified installation, the HS36 delivers dependable solar energy storage performance in a compact and installer-friendly design.
