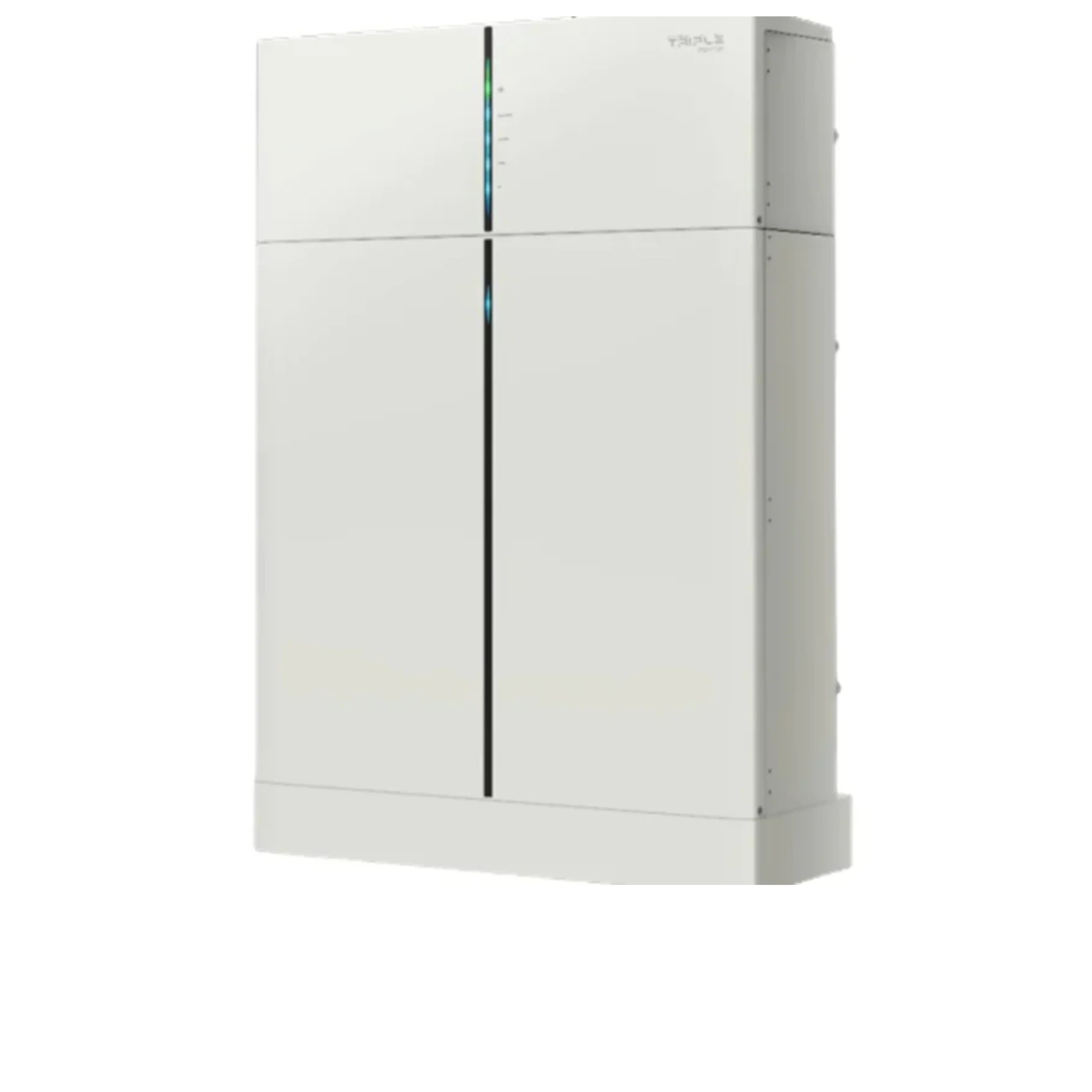

SolaX Triple Power 6.0kWh Battery Stack with BMS

Upgrade your home or commercial energy storage system with the SolaX Triple Power 6.0kWh battery stack, designed for high efficiency, safety, and scalability. This kit combines two 3.0kWh batteries with an integrated Battery Management System (BMS), providing reliable energy storage and smart system control.

Key Features

Advanced LiFePO4 Battery Technology

• Safest LiFePO4 chemistry with 30 Ah capacity

• Cycle life > 6,000 cycles for long-term performance

• Smart temperature balancing for optimal operation

• Wide operating temperature range: -30°C to 50°C

• IP65 protection for all-weather durability

Efficient and Easy-to-Install

• Low self-consumption maximises energy efficiency

• Quick plug-and-play installation saves time and effort

• Compatible with SolaX inverters for seamless integration

Kit Components

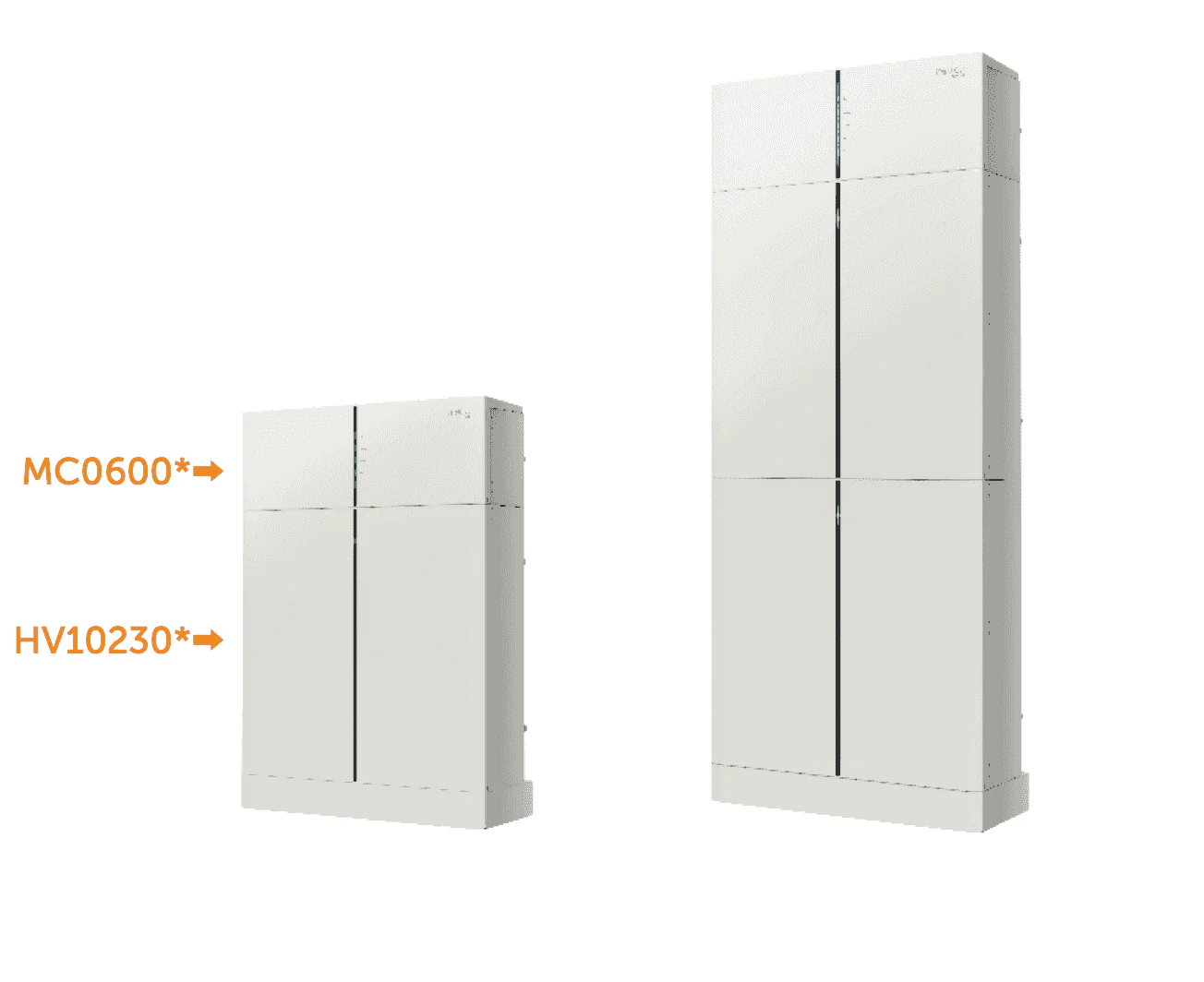

Included in the 6.0kWh Stack

• 2 x SolaX Triple Power 3.0kWh Batteries (HV10230)

• 1 x SolaX Triple Power 3.0 BMS (MC0600)

Specifications

• Weight: 76.5 kg

• Rated Power: 6,000 W

• Battery Type: Lithium Ion

• Nominal Energy: 6,100 Wh

• Depth of Discharge: 90%

• Voltage: 204 V

• Continuous Discharge Rate (Normal Use): 6,000 W

• Maximum Discharge Rate (5 Minutes): 5,500 W

• Surge Discharge Rate (15 Seconds): 8,000 W

• Maximum Charge Rate (5 Minutes): 6,100 W

Benefits

• Scalable solution for home or commercial solar systems

• Safe, high-performance battery chemistry ensures reliability

• Real-time system management through integrated BMS

• Durable and weather-resistant for long-term outdoor or indoor use
