SolarEdge Smart EV Charger - 7.4kW, 1ph, 6m Cable Type 2, (for UK)

#4: SE-EVK74C00-01

SolarEdge EV Charger 7.4kW Data Sheet

SolarEdge EV Charger 7.4kW Installation Manual

SolarEdge EV Charger 7.4kW Registering EV Charger

SolarEdge Smart EV Charger – Optimise Your Home Energy

Charge your electric vehicle efficiently using excess solar power with the SolarEdge Smart EV Charger. Seamlessly integrated with the SolarEdge Home range, this tethered single-phase charger allows homeowners to monitor and control both PV and EV energy from the mySolarEdge app.

---

Key Features

Smart Solar Integration

• Uses excess solar energy to charge your EV, reducing reliance on the grid.

• Dynamic balancing of charging power output for efficient energy use.

Remote Monitoring & Control

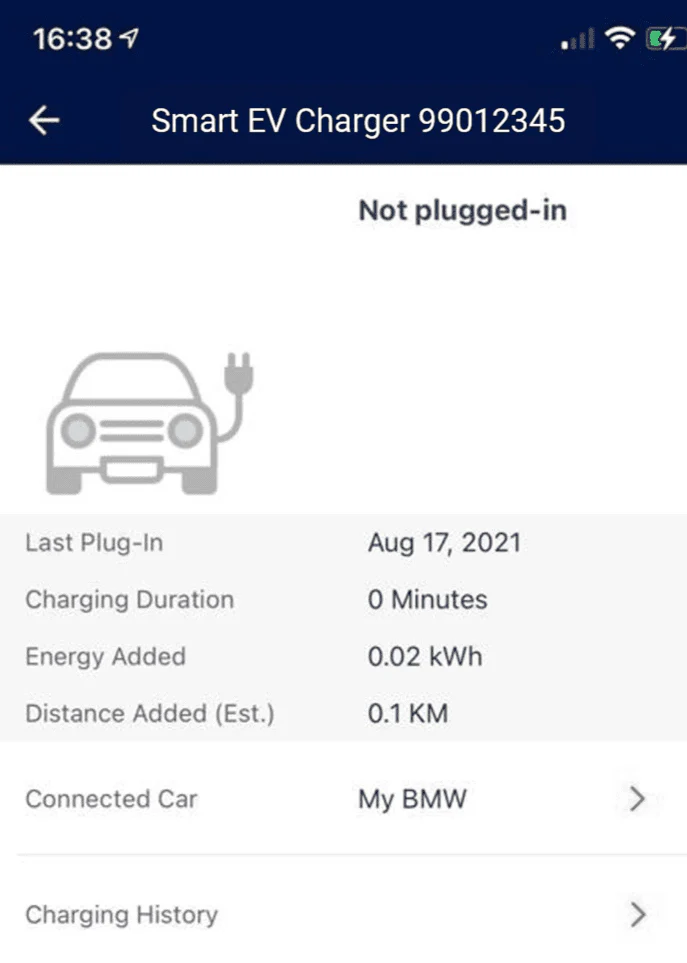

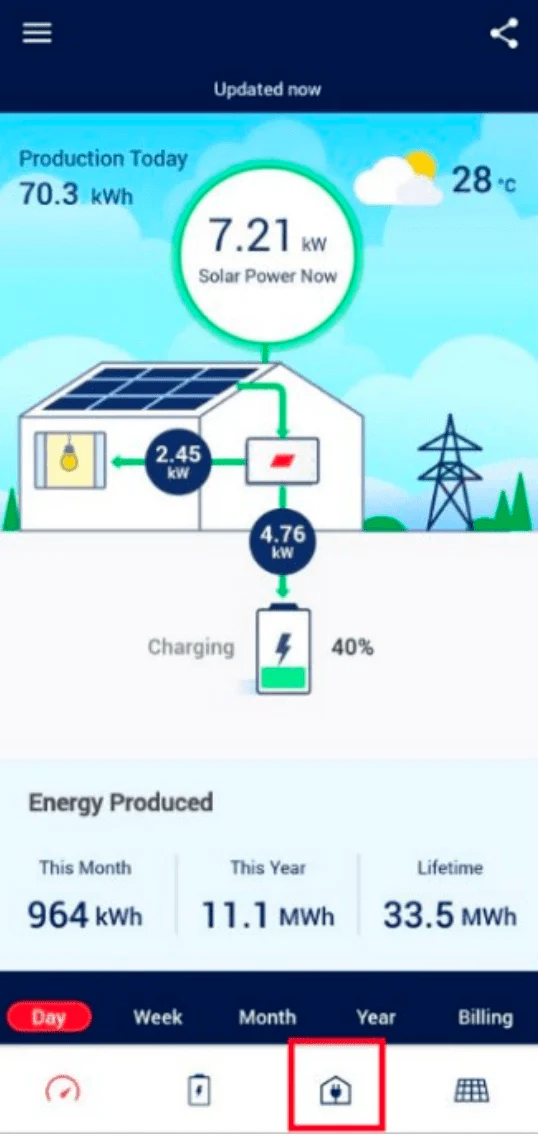

• Monitor PV, EV, and grid consumption from a single app.

• Customise charging schedules to take advantage of off-peak rates and Time-of-Use (TOU) tariffs.

• Manual TOU scheduling for one-off charging events.

Safe & Compliant

• G100 Issue 2 Amendment 2 compliant.

• Tamper protection and main circuit breaker protection.

• Mode 3 charging combines PV and grid electricity safely.

Convenient Design

• Tethered 6m Type 2 cable included.

• Install up to three chargers per residential site.

• Supports vertical wall installation with local network communication (Ethernet, LSA+, Wi-Fi).

Warranty

• 3-year manufacturer warranty for peace of mind.

---

Installation Requirements

• Must include an Earth Electrode.

• Residential systems only.

• Must be installed with an inverter and meter.

• Communicates with cloud and inverter via local network router.

---

Technical Specifications

• Phases: Single Phase

• EV Power Rating: 7.4 kW

• Dimensions: 260 x 764 x 385 mm (H x W x D)

---

Why Choose the SolarEdge Smart EV Charger?

The SolarEdge Smart EV Charger maximises solar energy usage while providing flexible, safe, and efficient charging for your electric vehicle. Integrated monitoring, smart scheduling, and TOU optimisation ensure you get the most from your home solar system while saving on electricity costs.
