Solar Edge S650B Power Optimizer

#2:S650-B-MC4

S650B Datasheet

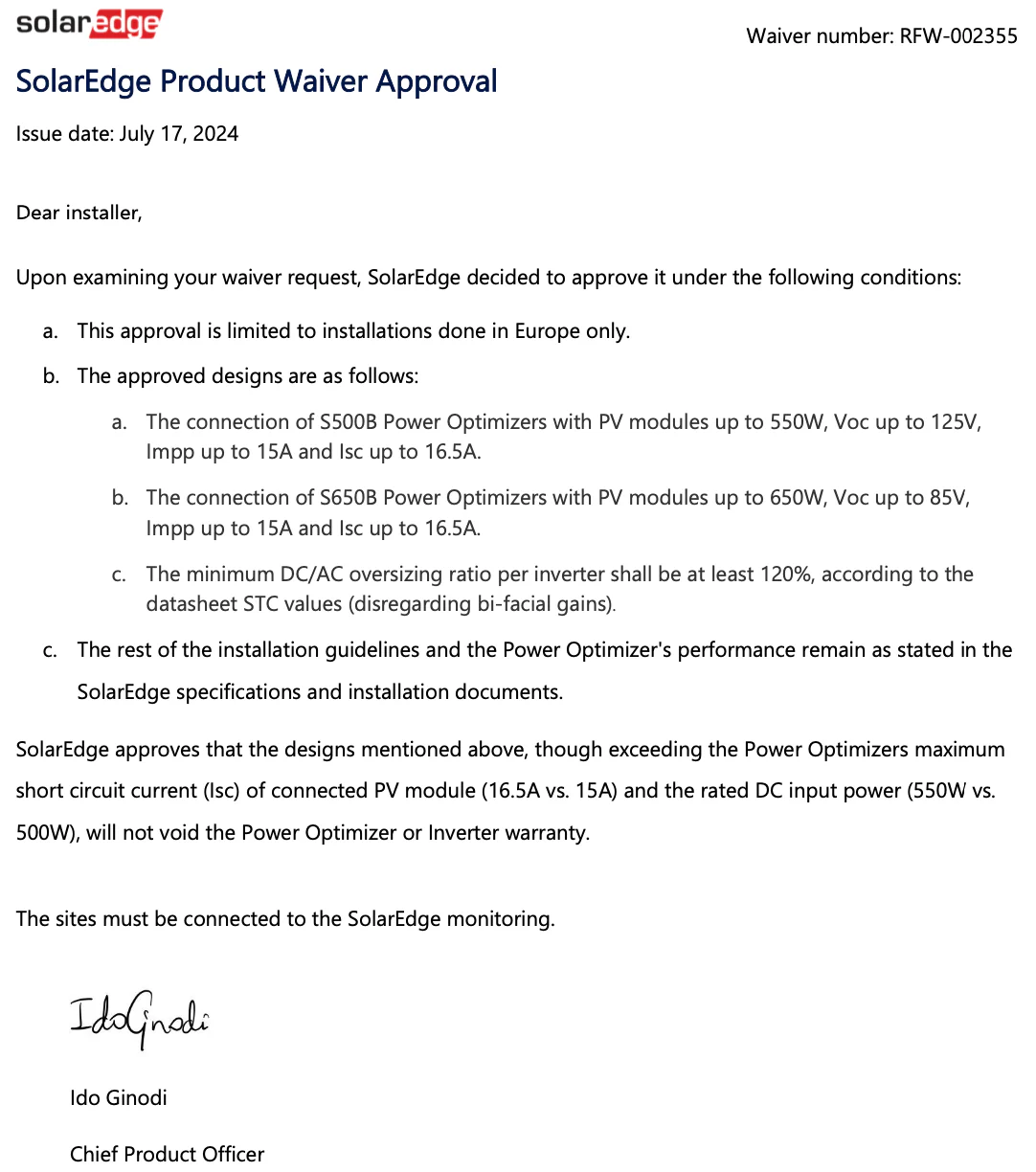

S650B Product Update

S650B Installation guide

S650B Warranty

SolarEdge S-Series Power Optimizer – Smarter, Safer, Faster

Product Overview

The S-Series Power Optimizer from SolarEdge brings advanced safety and efficiency to residential solar systems. Designed to work seamlessly with SolarEdge inverters, it maximizes energy production, minimizes losses, and makes installation faster and simpler.

---

Key Features & Benefits

• Module-Level Optimization: Reduces all types of module mismatch losses, from manufacturing tolerances to partial shading.

• Enhanced Safety: Detects abnormal PV connector behavior and features module-level voltage shutdown for installer and firefighter protection.

• Faster Installation: Simplified cable management and single-bolt assembly for quicker setup.

• Flexible System Design: Compatible with bifacial PV modules and optimized for maximum rooftop space utilization.

• Superior Efficiency: Operates at 99.5% efficiency for reliable energy generation.

• Durable & Reliable: Backed by a 25-year warranty for long-term peace of mind.

---

Technical Specifications

• Weight: 0.79 kg

• Min PPT Voltage: 0 V

• Max PPT Voltage: 105 V

• DC Startup/Shutdown Voltage: 8 V

• Max DC Power: 650 W

• Max DC Current: 15 A

• DC Inputs: 1

• Connector: MC4

• Included Connectors: 0

• Euro Efficiency: 0 %

• Transformer: N/A

• MPPT Quantity: 1

• Integrated DC Switch: No

• Warranty: 25 years

---

Why Choose SolarEdge S-Series?

With patented optimization technology, enhanced safety features, and simplified installation, the S-Series Power Optimizer ensures maximum performance and reliability for residential solar rooftops.
