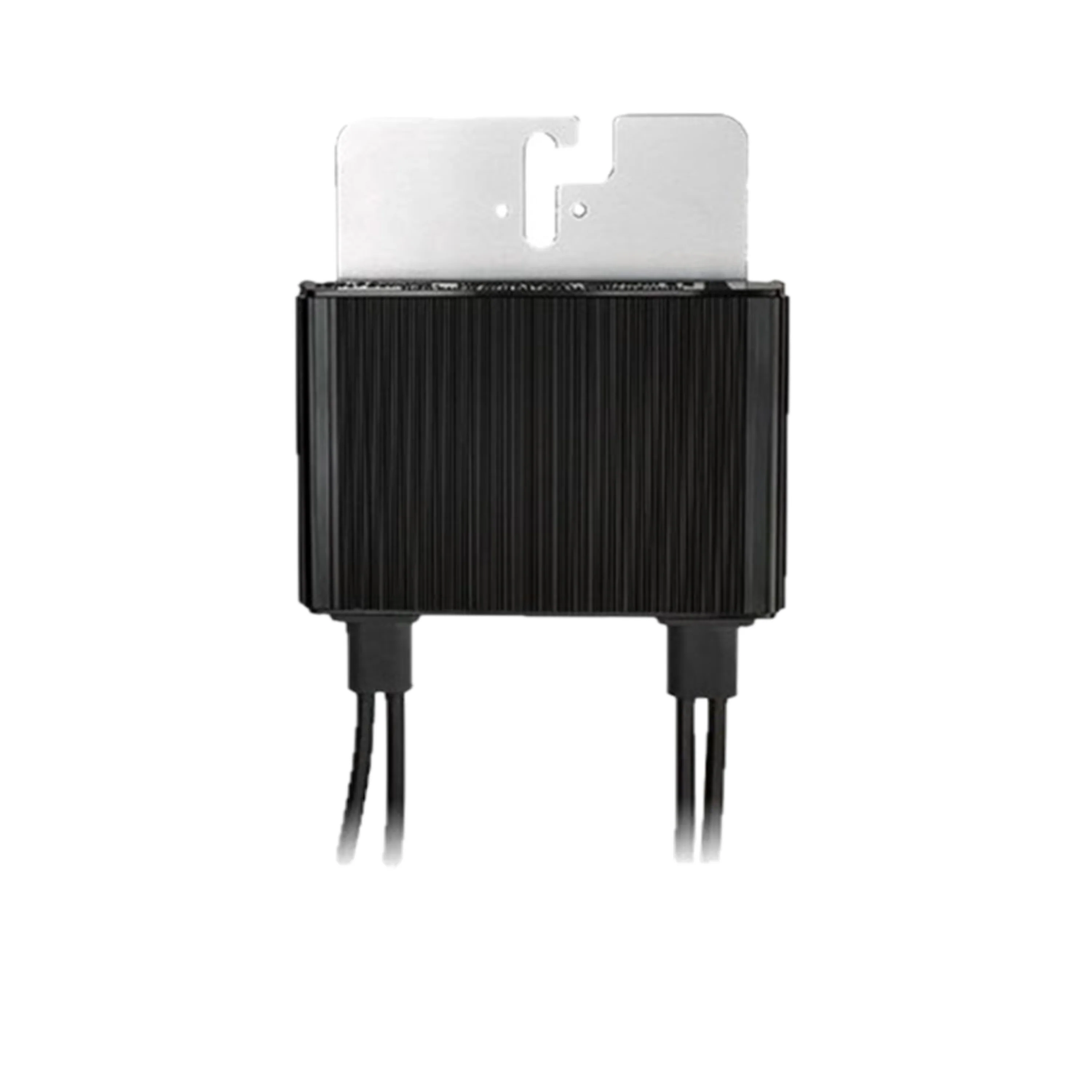

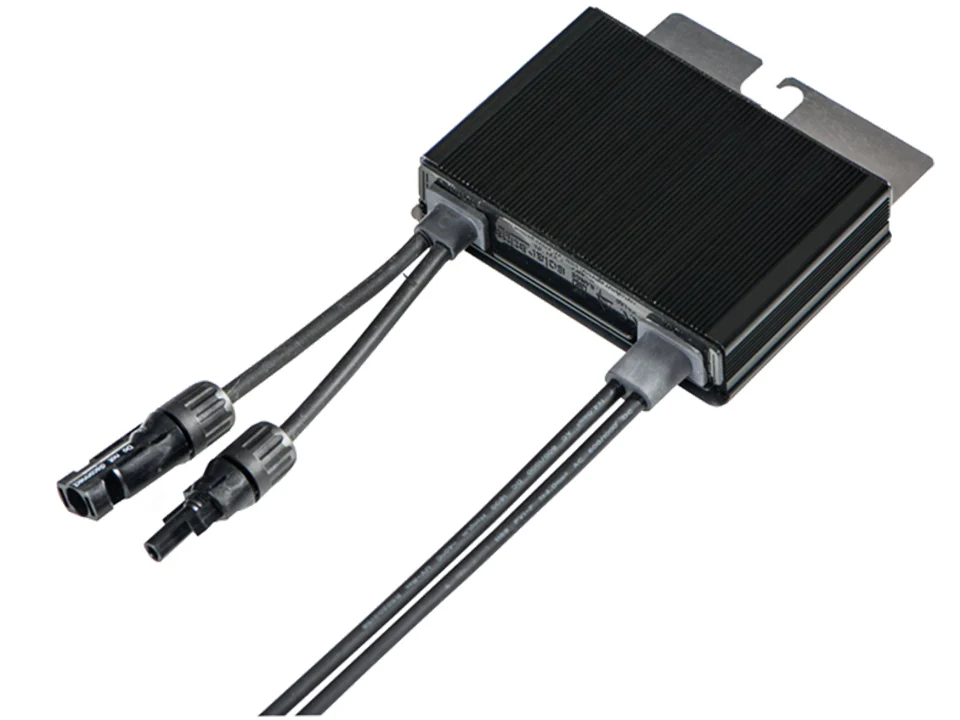

SolarEdge S1000 Power Optimizer

The SolarEdge S1000 Power Optimizer is a high-efficiency module-level power solution designed specifically for SolarEdge commercial inverters. It maximises energy harvest, mitigates losses caused by module mismatch, and enhances safety for both installers and firefighters.

---

Key Features

• Mitigates Module Mismatch Losses – compensates for manufacturing tolerances, shading, soiling, and other performance differences between modules.

• Fast & Easy Installation – simplified cable management and assembly using a single bolt.

• Enhanced Safety – module-level voltage shutdown prevents hazards during installation and emergencies.

• Abnormal PV Connector Detection – proactively prevents potential safety issues.

• Flexible System Design – compatible with bifacial PV modules and optimised for maximum space utilisation.

• Superior Efficiency – achieves 99.5% conversion efficiency for maximum energy output.

---

Technical Specifications

• Weight: 1.09 kg

• Minimum PV Voltage: 12 V

• Maximum PV Voltage: 125 V

• DC Startup Voltage: 12 V

• DC Shutdown Voltage: 125 V

• Maximum DC Power: 1,000 W

• Maximum DC Current: 15 A

• Maximum DC Inputs: 2

• DC Fuses: None

• Connector Type: MC4

• Included Connectors: 2

• MPPT Quantity: 1

• Integrated DC Switch: No

---

Minimum Order

• 4 units per order

---

Why Choose the SolarEdge S1000 Power Optimizer?

The S1000 Power Optimizer is ideal for commercial solar installations where maximising energy yield, system flexibility, and safety are priorities. By optimising performance at the module level, it ensures reliable, high-efficiency operation and simplifies system design and maintenance.
