Pylontech US5000-1C 4.8kWh Li-Ion Solar Battery 48V

To view our full range of Pylontech batteries visit our collection page here.

 Please note that US2000/C, US3000/C & US5000-1C are all compatible with each other.

US5000 Datasheet

US5000 Installation Manual

US5000 Warranty

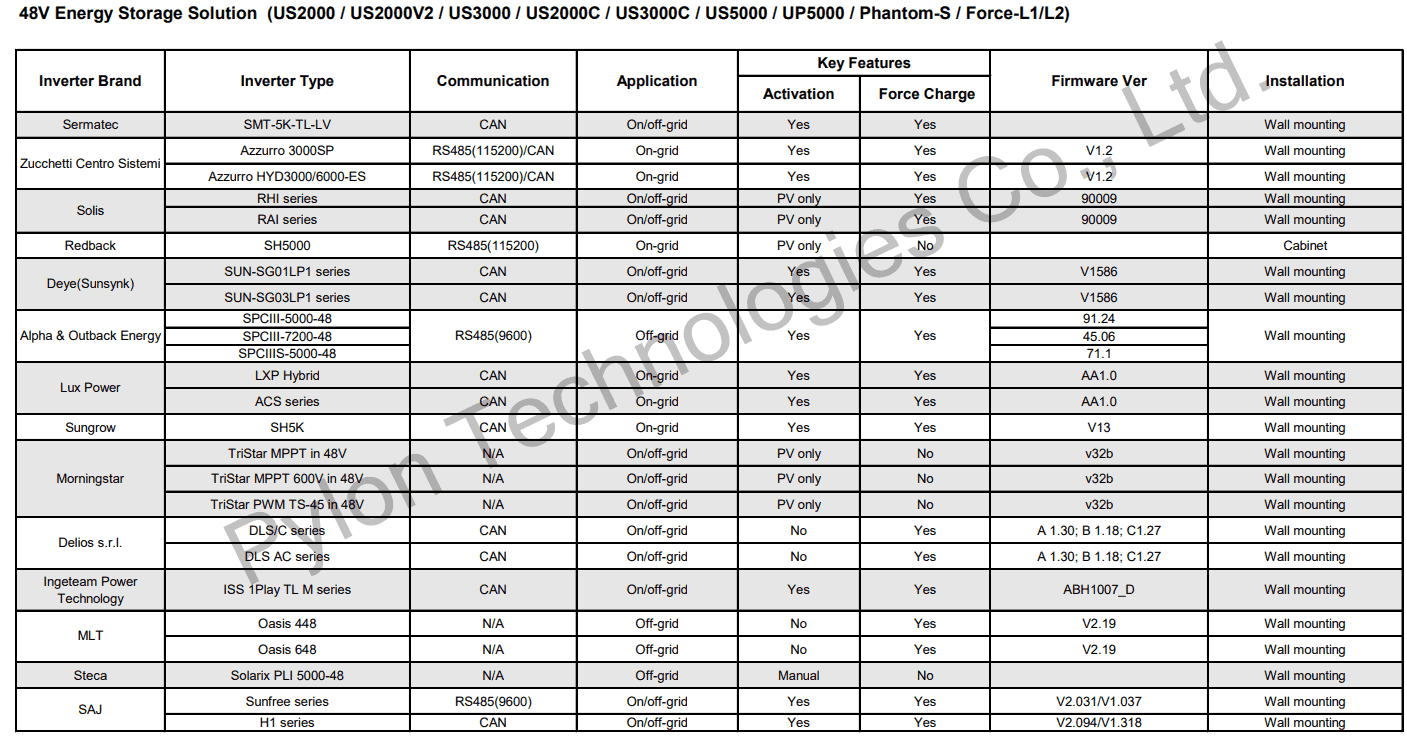

US5000 Compatibility Sheet

Connecting cables included as standard

Pylontech US5000-1C 48V Lithium Battery – High-Capacity Modular Energy Storage

The Pylontech US5000-1C is a 48V high-performance lithium battery from the US series, engineered for UK residential and commercial energy storage systems. With modular design, high usable capacity, and intelligent battery management, this unit provides efficient, safe, and scalable energy storage for solar PV and hybrid inverter setups.

---

Key Features

Modular & Expandable Design

• Modular system allows parallel connection of up to 16 units

• Supports large installations up to 72.96kWh without the need for an LV Hub

• Simplifies system expansion and reduces the number of required modules

High Usable Capacity & Performance

• Usable capacity: 4,560 Wh with 95% Depth of Discharge (DoD)

• High energy density reduces the number of modules needed for desired capacity

• Long cycle life ensures reliable performance over years of use

Intelligent Battery Management System (BMS)

• Protects against abnormal temperature, current, voltage, and state of charge (SoC)

• Compatible with RS485 and CAN communication protocols

• Optimises safety and efficiency for connected systems

Compatibility & Installation

• Compatible with tier 1 inverter brands in the UK market

• Standard 7-year warranty, extendable to 10 years by registering online

• Warranty valid only if installed by a qualified electrician or authorised installer

---

Technical Specifications

• Supplier Part No: US5000-1C

• Weight: 38 kg

• Battery Type: Lithium Ion

• Nominal Energy: 4,800 Wh

• Depth of Discharge: 95%

• Voltage: 48 V

• Continuous Discharge Rate (Normal Use): 2,400 W

• Maximum Discharge Rate (5 Minutes): 4,800 W

• Surge Discharge Rate (15 Seconds): 5,808 W

• Maximum Charge Rate (5 Minutes): 4,800 W

---

Why Choose the Pylontech US5000-1C?

• High-capacity modular battery for scalable energy storage

• Intelligent BMS ensures safe and stable operation

• Reduced module count thanks to higher usable capacity

• Compatible with UK hybrid inverters and solar PV systems

• Extended warranty options for peace of mind

---

✅ Invest in the Pylontech US5000-1C 48V battery for a reliable, high-performance, and scalable energy storage solution designed for UK homes and commercial properties.

To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support
