Double pair genuine RS485 cable 1M - 4 cores

Part No: RS485-DOUBLE-1M Storage Systems - Communication Cable

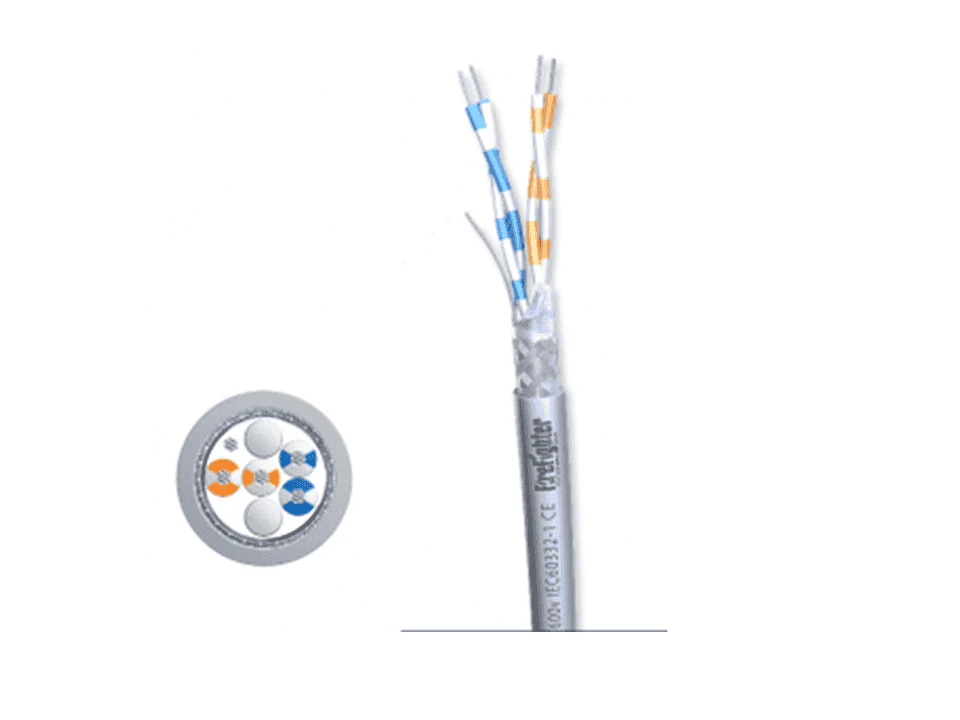

LSZH 440 Series 2x2x24AWG RS-485 Cable – BACnet® MS/TP Compatible

Ensure reliable data communication for building automation and energy management systems with the LSZH 440 Series RS-485 Cable. Designed for TREND systems, BACnet® over MS/TP protocols, this high-performance cable delivers robust, long-lasting performance in demanding environments.

---

Key Features

• BACnet® MS/TP Compatible: Ideal for TREND system integration and building automation networks.

• High-Quality Conductors: Stranded tinned copper 24AWG for low resistance and excellent signal integrity.

• Four-Core Twisted Pair Construction: 2x2 twisted pairs (Blue/White – White/Blue, Orange/White – White/Orange) to minimize interference and signal degradation.

• Shielded & Screened: Overall aluminium/polyester tape with drain wire and 80% tinned copper braid ensures superior noise immunity.

• Durable LSZH Outer Jacket: Fire-resistant, UV-stable Low Smoke Zero Halogen (LSZH) jacket provides safety and longevity.

• Rated Voltage: 600V

---

Applications

• Building automation systems

• BACnet® over MS/TP communication

• TREND system installations

• HVAC, energy monitoring, and industrial automation

---

Technical Specifications

• Conductor: Stranded tinned copper, 24AWG

• Insulation: Polyethylene (PE)

• Cores: 4 cores twisted as two pairs

• Shielding: Aluminium/Polyester tape + 80% tinned copper braid

• Drain Wire: Stranded tinned copper, 24AWG

• Outer Jacket: LSZH FireFighter®, UV-Stable

• Voltage Rating: 600 V

---
