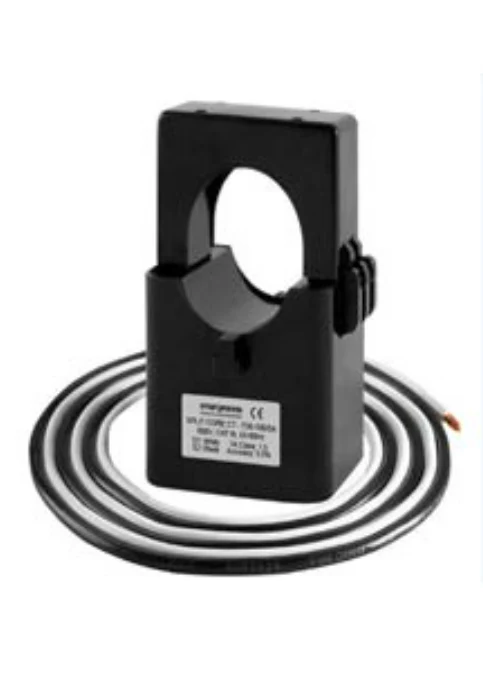

SCT36-500/5A Split Core Current Transformer – 500A Clamp

The SCT36-500/5A Split Core Current Transformer provides precise current measurement and monitoring for electrical systems. Designed for safe and easy installation, it is ideal for industrial, commercial, and residential energy applications.

---

Key Features

Accurate Measurement

• ±1% accuracy between 20% and 120% of rated current.

• Measures up to 500A with reliable performance.

Easy Installation

• Split core design allows simple clamping around conductors without disconnecting cables.

• Includes fly lead for quick integration into monitoring systems.

Robust & Durable

• Case made of PC / UL94-V0 for enhanced safety.

• Core constructed with Permalloy and epoxy for stability and long-term reliability.

Wide Operating Conditions

• Frequency: 50–60 Hz

• Operating temperature: -15°C to +60°C

• Operating humidity: <85%

High Voltage Tolerance

• Insulation voltage: 600V AC

• Maximum primary voltage: 5,000V AC

• Dielectric strength: 2.5kV/1mA/1min

---

Technical Specifications

• Part Number: SCT36-500/5A

• Bobbin Material: PBT

• Core Material: Permalloy

• Internal Structure: Epoxy

• Case Material: PC / UL94-V0

---

Why Choose the SCT36-500/5A Split Core Current Transformer?

Designed for precision and safety, the SCT36-500/5A Current Transformer offers reliable current measurement, easy installation, and durable construction. Ideal for energy monitoring in PV systems, industrial equipment, and other electrical applications.
