Current Transformer 100A (incl. fly lead)

#1: CT-100A Display - Current Sensor Clamps

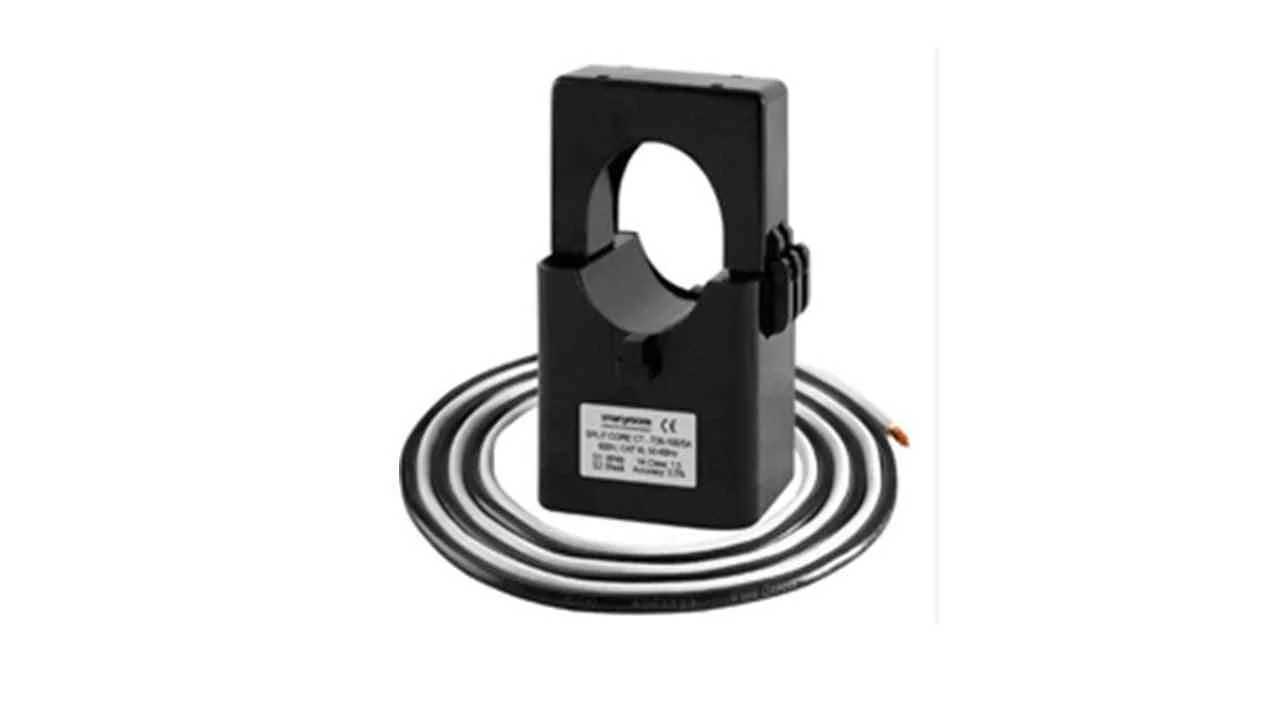

100A Split Core Current Transformer (CT) Clamp – SCT24 Series

Ensure precise current measurement and energy monitoring with the 100A Split Core Current Transformer Clamp (SCT24 100/5). Designed for reliability, safety, and accuracy, this CT clamp is ideal for both residential and commercial solar, energy, and industrial installations.

---

Key Features

• Split Core Design: Enables easy installation around existing conductors without disconnecting cables.

• High Accuracy: ±1% accuracy from 20% to 120% of rated current ensures reliable readings.

• Wide Frequency Range: Operates efficiently at 50–60Hz.

• Robust Insulation: Insulation voltage rated at 600V AC; dielectric strength of 2.5kV/1mA/1min for enhanced safety.

• High Voltage Handling: Maximum primary voltage 5000V AC.

• Durable Materials: PC/UL94-V0 case, PBT bobbin, and permalloy core provide long-lasting performance.

• Temperature & Humidity Resistant: Operating temperature from -15°C to +60°C, with humidity tolerance below 85%.

• Fly Lead Included: Ready for easy connection to meters and energy monitoring systems.

---

Technical Specifications

• Part Number: SCT24 100/5

• Primary Current: 100A

• Secondary Current: 5A

• Case Material: PC / UL94-V0

• Core Material: Permalloy

• Bobbin Material: PBT

---
