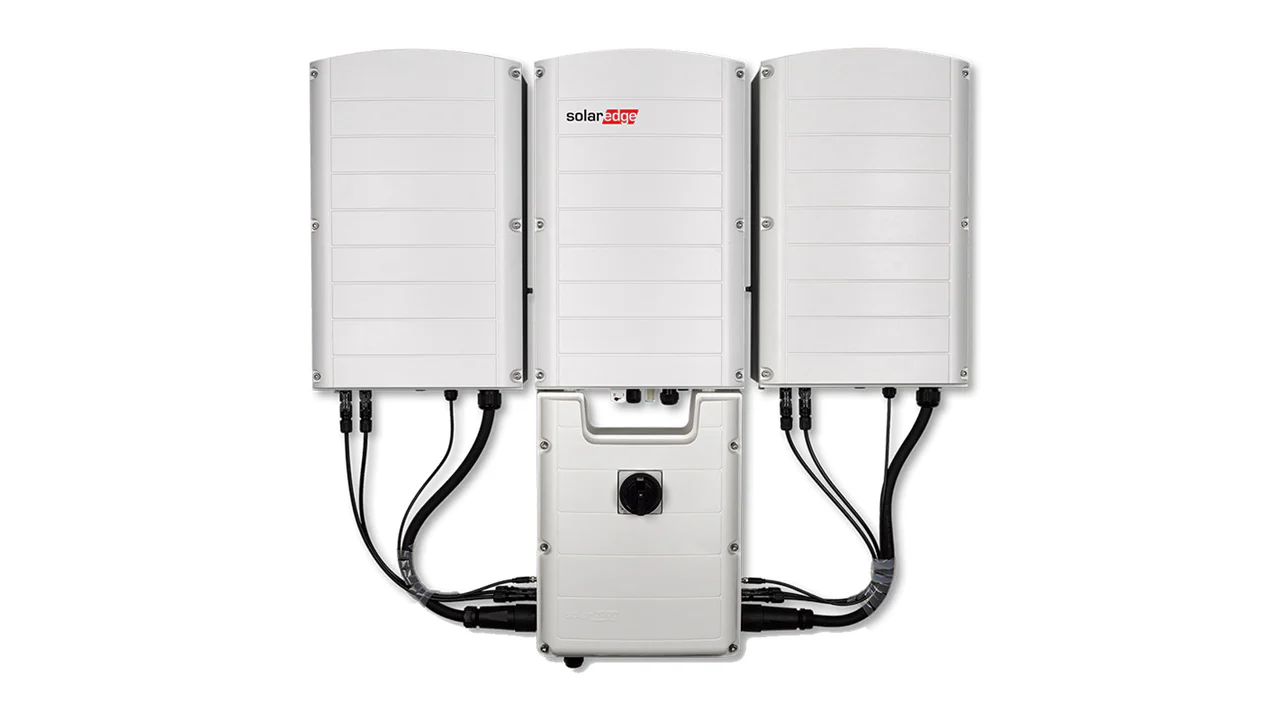

Three Phase Synergy Inverter – 90kW

The Three Phase Synergy Inverter is a high-performance, modular inverter designed for large-scale commercial and industrial PV systems. With advanced safety features, superior efficiency, and simplified installation, it delivers maximum energy output while reducing downtime and installation costs.

---

🔑 Key Features

Efficient & Reliable Operation

• 90kW rated power with 98% Euro efficiency

• Modular design with independent Synergy Units for higher uptime and easier servicing

• Built-in PID mitigation to maximise system performance

Advanced Safety & Protection

• Pre-commissioning feature for automated system validation before grid connection

• Integrated thermal sensors detect faulty wiring for enhanced protection

• Built-in arc fault protection with optional rapid shutdown

• Monitored, field-replaceable surge protection devices (Type 2 DC SPDs included, optional Type 2 AC SPD)

Installation Made Easy

• Lightweight modular units allow easy 2-person installation

• Integrated DC safety switch removes the need for external DC isolators

• Plug-and-play wiring and smart monitoring for faster commissioning

---

⚙️ Technical Specifications

• Rated Power: 90,000 W

• Max DC Power: 45,000 W

• Max AC Power (5 Minutes): 90,000 W

• Surge AC Power (1 Second): 90,000 W

• Max Input Voltage: 1,000 V

• Max DC Current: 43.5 A

• Max DC Inputs: 9

• Efficiency (Euro): 98 %

• Connector Type: MC4 (18 included)

• Weight: 114 kg

• Transformer: None (transformerless)

• Integrated DC Switch: Yes

• Warranty: 12 years

---

✅ Benefits

• Lower installation costs with modular, lightweight design

• Improved reliability thanks to independent Synergy Unit operation

• Maximum uptime with fast serviceability

• Enhanced system safety with built-in protection features

• Designed for large-scale commercial & industrial solar PV systems
